H-bridge Switch

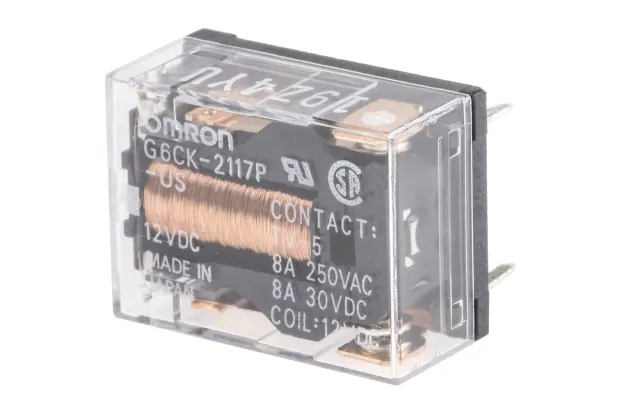

The hbridge switch platform allows you to drive an h-bridge controlled latching relay.

# Example configuration entry
switch:
  - platform: hbridge
    id: my_relay
    name: "Relay"
    on_pin: GPIOXX
    off_pin: GPIOXX
    pulse_length: 50ms
    wait_time: 50ms

Configuration variables:

• on_pin (Required, Pin Schema): The GPIO pin to pulse to turn on the switch.

• off_pin (Required, Pin Schema): The GPIO pin to pulse to turn off the switch.

• pulse_length (Optional, Time): The length in milliseconds of the pulse sent on on_pin and off_pin to change switch state. Defaults to 100 ms .

• wait_time (Optional, Time): The time in milliseconds to delay between pulses on off_pin and on_pin . Defaults to no delay.

• optimistic (optional, boolean): Whether to operate in optimistic mode - when in this mode, any command sent to the switch will immediately update the reported state. Defaults to false , and the reported state updates only at the end of the pulse.

• All other options from Switch Component.
