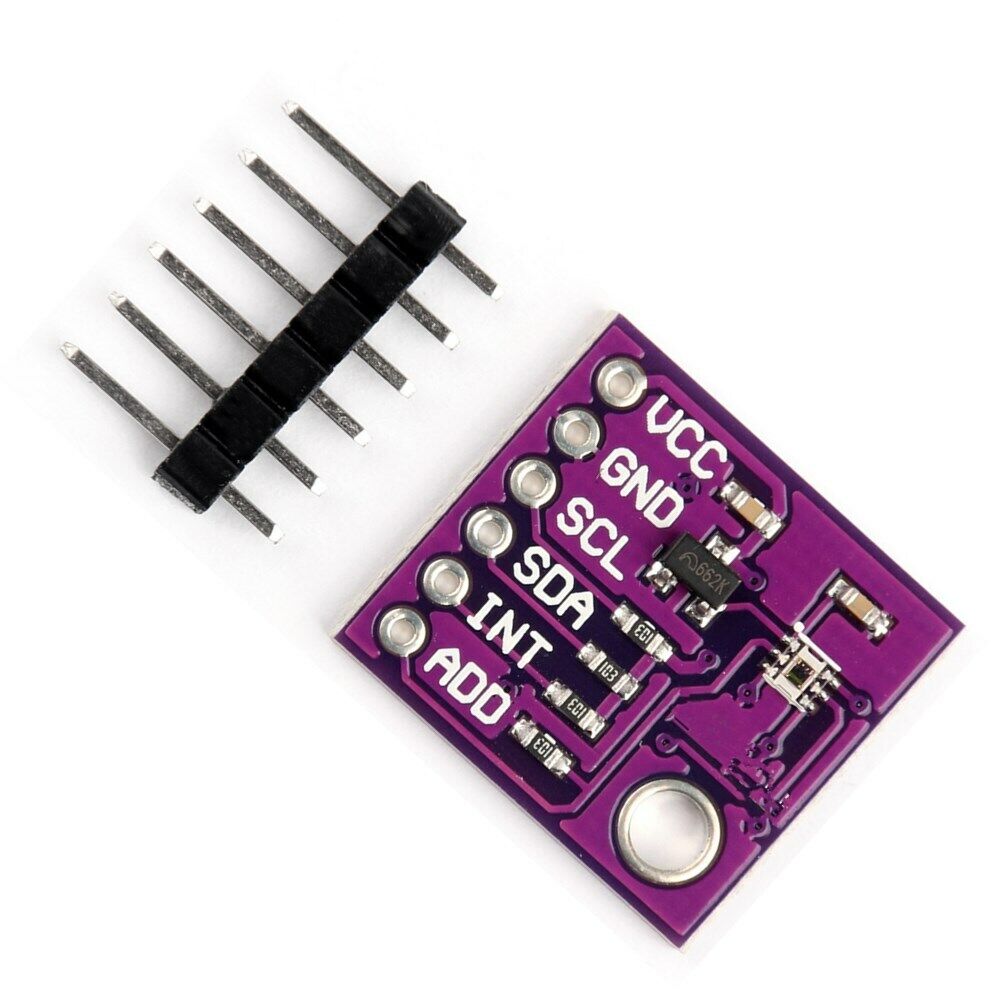

OPT3001 Ambient Light Sensor

The opt3001 sensor platform allows you to use your OPT3001 (datasheet) ambient light sensor with ESPHome. The I²C bus is required to be set up in your configuration for this sensor to work.

# Example configuration entry
sensor:
  - platform: opt3001
    name: "OPT3001 Illuminance"
    address: 0x44
    update_interval: 60s

Configuration variables:

• name (Required, string): The name for the sensor.
• address (Optional, int): Manually specify the I²C address of the sensor. Defaults to 0x44 (address if address pin is pulled low). If the address pin is pulled high, the address is 0x45 . If the address pin is connected to SDA, the address is 0x46 . If the address pin is connected to SCL, the address is 0x47 .
• update_interval (Optional, Time): The interval to check the sensor. Defaults to 60s .
• id (Optional, ID): Manually specify the ID used for code generation.
• All other options from Sensor.
