DF-Player mini

Edit this page on GitHub

DF-Player mini

The dfplayer (datasheet), component allows you to play sound and music stored in an SD card or USB flash drive.

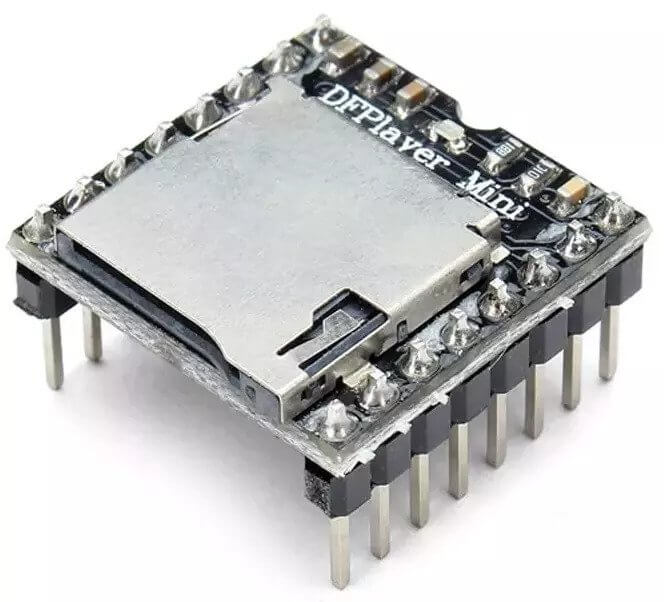

DF-Player mini Module.

For this component to work you need to have set up a UART bus in your configuration.

Overview

The module can be powered by the 3.3V output of a NodeMCU. For communication you can connect only the tx_pin of the uart bus to the module’s RX but if you need feedback of playback active you will also need to connect the rx_pin to the module’s TX . For best quality audio a powered stereo speaker can be connected to the modules DAC_R , DAC_L and GND , alternatively the module features a built-in 3W audio amplifier, in that case the pins SPK_1 and SPK_2 should be connected to one passive speaker and a 5V 1A power supply will be required.

# Example configuration entry
dfplayer:

Configuration variables:

  • uart_id (Optional, ID): Manually specify the ID of the UART hub.
  • id (Optional, ID): Manually specify the ID used for code generation.
  • on_finished_playback (Optional, Automation): An action to be performed when playback is finished.

dfplayer.is_playing Condition

This Condition returns true while playback is active.

# In some trigger:
on_...:
  if:
    condition:
      dfplayer.is_playing
    then:
      logger.log: 'Playback is active!'

dfplayer.play_next Action

Starts playback of next track or skips to the next track.

on_...:
  then:
    - dfplayer.play_next:

dfplayer.play_previous Action

Plays the previously played track.

on_...:
  then:
    - dfplayer.play_previous:

dfplayer.play Action

Plays a track.

on_...:
  then:
    - dfplayer.play:
        file: 23
        loop: false
    # Shorthand
    - dfplayer.play: 23

Configuration options:

  • file (Optional, int, templatable): The global track number (from all tracks in the device). If not specified plays the first track.
  • loop (Optional, boolean, templatable): Repeats playing the same track. Defaults to false .

dfplayer.play_mp3 Action

Plays a track inside the folder mp3 . Files inside the folder must be numbered from 1 to 9999, like 0001.mp3 , 0002.mp3 , … etc. The folder name needs to be mp3 , placed under the SD card root directory, and the mp3 file name needs to be 4 digits, for example, “0001.mp3”, placed under the mp3 folder. If you want, you can add additional text after the number in the filename, for example, 0001hello.mp3 , but must always be referenced by number only in yaml.

/mp3
  /0001hello.mp3
  /0002.mp3
  /0003_thisistheway.mp3
  ..
on_...:
  then:
    - dfplayer.play_mp3:
        file: 1
    # Shorthand
    - dfplayer.play_mp3: 1

Configuration options:

  • file (Required, int, templatable): The file number inside the mp3 folder to play.

dfplayer.play_folder Action

Plays files inside numbered folders, folders must be numbered from 1 and with leading zeros. Like 01 , 02 , … etc. Files inside the folders must be numbered with two leading zeros, like 001.mp3 , 002.mp3 , … etc. Folder numbers can range from 1 to 99 and file name from 1 to 255 or folder number from 1 to 10 and file number from 1 to 1000.

/01
  /001.mp3
  /002.mp3
  ..
/02
  /001.mp3
  /002.mp3
  /003.mp3
  ..
on_...:
  then:
    - dfplayer.play_folder:
        folder: 2
        file: 1

Configuration options:

  • folder (Required, int, templatable): The folder number.
  • file (Optional, int, templatable): The file number inside the folder to play. Optional only if loop is not set.
  • loop (Optional, boolean, templatable): Repeats playing all files in the folder. Causes file to be ignored. Defaults to false .

dfplayer.set_device Action

Changes the device in use. Valid values are TF_CARD and USB .

on_...:
  then:
    - dfplayer.set_device: TF_CARD

dfplayer.set_volume Action

Changes volume.

on_...:
  then:
    - dfplayer.set_volume:
        volume: 20
    # Shorthand
    - dfplayer.set_volume: 20

Configuration options:

  • volume (Required, int, templatable): The volume value. Valid values goes from 0 to 30 .

dfplayer.volume_up Action

Turn volume up.

on_...:
  then:
    - dfplayer.volume_up

dfplayer.volume_down Action

Turn volume down.

on_...:
  then:
    - dfplayer.volume_down

dfplayer.set_eq Action

Changes audio equalization preset.

on_...:
  then:
    - dfplayer.set_eq:
        eq_preset: ROCK
    # Shorthand
    - dfplayer.set_eq: ROCK

Configuration options:

  • eq_preset (Required): Eq Preset value. Valid values are NORMAL , POP , ROCK , JAZZ , CLASSIC and BASS .

dfplayer.sleep Action

Enters sleep mode. Playback is stopped and the action dfplayer.set_device: TF_CARD should be send for playback to be enabled again.

on_...:
  then:
    - dfplayer.sleep

dfplayer.reset Action

Module reset.

on_...:
  then:
    - dfplayer.reset

dfplayer.start Action

Starts playing a track or resumes paused playback.

on_...:
  then:
    - dfplayer.start

dfplayer.pause Action

Pauses playback, playback can be resumed from the same position with dfplayer.start .

on_...:
  then:
    - dfplayer.pause

dfplayer.stop Action

Stops playback.

on_...:
  then:
    - dfplayer.stop

dfplayer.random Action

Randomly plays all tracks.

on_...:
  then:
    - dfplayer.random

All actions

  • id (Optional, ID): Manually specify the ID of the DFPlayer if you have multiple components.

Test setup

With the following code you can quickly setup a node and use Home Assistant’s service in the developer tools. E.g. for calling dfplayer.play_folder select the service esphome.test_node_dfplayer_play and in service data enter

{ "file": 23 }

Sample code

uart:
  tx_pin: GPIOXX
  rx_pin: GPIOXX
  baud_rate: 9600

dfplayer:
  on_finished_playback:
    then:
      logger.log: 'Playback finished event'

api:
  actions:
  - action: dfplayer_next
    then:
      - dfplayer.play_next:
  - action: dfplayer_previous
    then:
      - dfplayer.play_previous:
  - action: dfplayer_play
    variables:
      file: int
    then:
      - dfplayer.play: !lambda 'return file;'
  - action: dfplayer_play_loop
    variables:
      file: int
      loop_: bool
    then:
      - dfplayer.play:
          file: !lambda 'return file;'
          loop: !lambda 'return loop_;'
  - action: dfplayer_play_folder
    variables:
      folder: int
      file: int
    then:
      - dfplayer.play_folder:
          folder: !lambda 'return folder;'
          file: !lambda 'return file;'

  - action: dfplayer_play_loop_folder
    variables:
      folder: int
    then:
      - dfplayer.play_folder:
          folder: !lambda 'return folder;'
          loop: true

  - action: dfplayer_set_device_tf
    then:
      - dfplayer.set_device: TF_CARD

  - action: dfplayer_set_device_usb
    then:
      - dfplayer.set_device: USB

  - action: dfplayer_set_volume
    variables:
      volume: int
    then:
      - dfplayer.set_volume: !lambda 'return volume;'
  - action: dfplayer_set_eq
    variables:
      preset: int
    then:
      - dfplayer.set_eq: !lambda 'return static_cast<dfplayer::EqPreset>(preset);'

  - action: dfplayer_sleep
    then:
      - dfplayer.sleep

  - action: dfplayer_reset
    then:
      - dfplayer.reset

  - action: dfplayer_start
    then:
      - dfplayer.start

  - action: dfplayer_pause
    then:
      - dfplayer.pause

  - action: dfplayer_stop
    then:
      - dfplayer.stop

  - action: dfplayer_random
    then:
      - dfplayer.random

  - action: dfplayer_volume_up
    then:
      - dfplayer.volume_up

  - action: dfplayer_volume_down
    then:
      - dfplayer.volume_down
